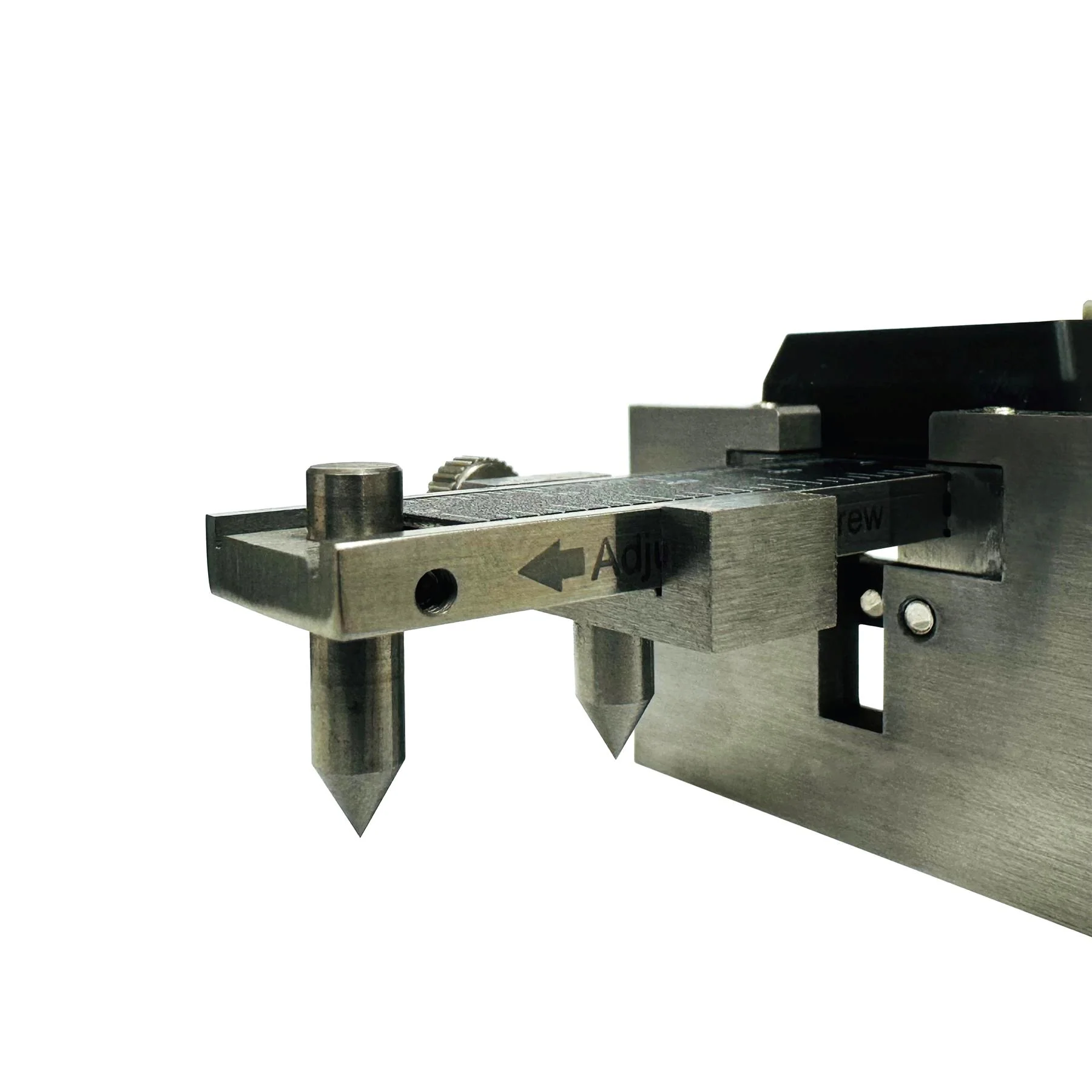

iGaging's 3-in-1 Mortice Gauge is a multi-purpose tool featuring a heavy-duty pin for precision marking along, across and on end grain. The tool comes with a secondary pin attachment which converts the gauge to a mortice gauge. The final attachment replaces the 4.90mm thick machined flat gauge face which can be used as a divider/compass. This gauge is made to the same high-quality standards as all iGaging products, with an accuracy of up to 0.025mm over its 150mm range.

Perfect for getting your measurements done quickly for marking out with a large, easy-to-read LCD display that reads in metric (millimetres), decimalised and fractional imperial in 1/128^th graduations, to finish the tools is IP54-splash water, oil and dust resistant.

Features

• iP54 protective rating:Moisture and dust resistance
• Measuring range: 0 - 150mm (0 - 6")
• Compass range: 0 - 200mm radius (0 - 8")
• Divider range: 0 - 406mm diameter (0 - 16")
• Accuracy: 0.025mm (0.001")
• Repeatibility: 0.013mm (0.0005")
• Reading: 0.0005"/0.01 mm/ 1/128"
• Large LCD display
• Precise marking on steel & wood surfaces
• Battery: 3V CR2032 included
